What is the MCX and who needs it?
Like so many people, I had assumed that
moving coil step-up transformers were a relic
from the past. Well-designed, modern phono
preamps can achieve plenty of gain at very
low noise AND a very intimate connection
with the music. Adding a step-up transformer into the signal path seemed like an expensive, unnecessary,
and detrimental complication.
But, contrary to this, the popularity of SUT (Step Up Transformer) is on the upswing. So many people were telling me how putting a good SUT in front of their phono preamp brought out a rich, lush and emotive character that was completely seductive. People were passionate about the sound quality.
I realized it was time to take a serious look at the role a SUT could play in vinyl playback.

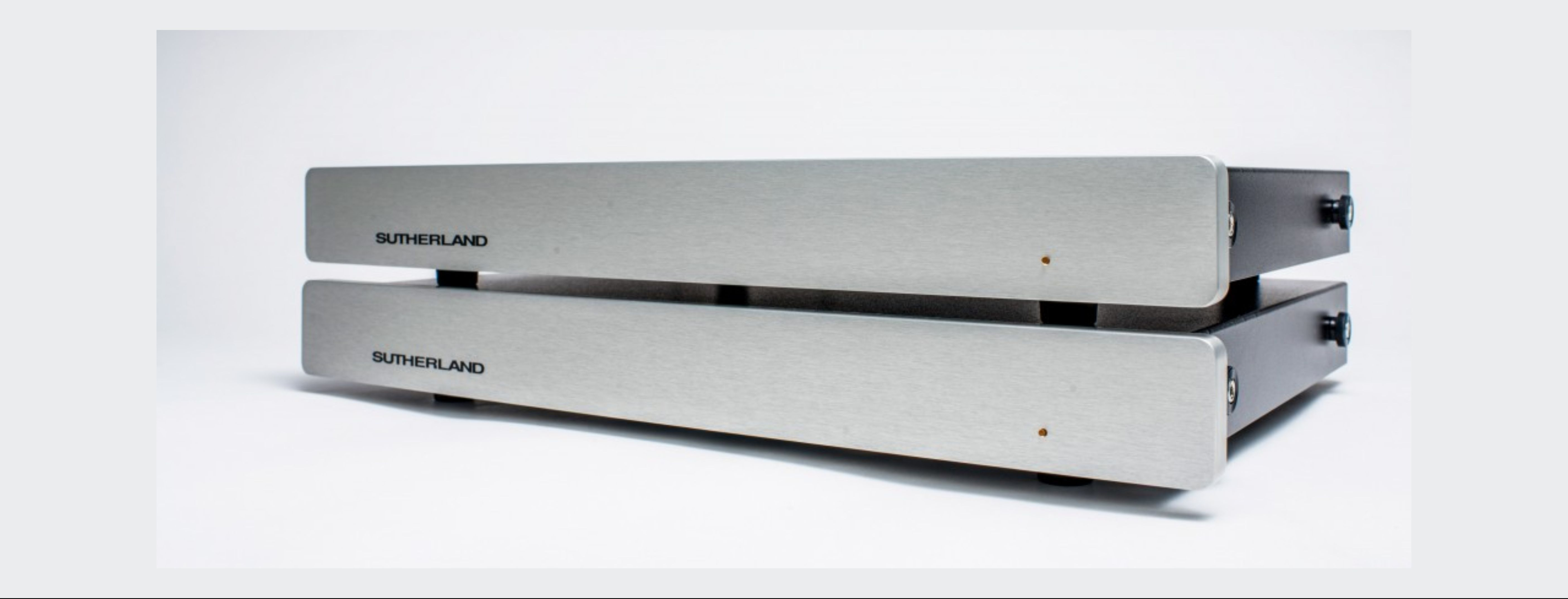

The MCX is just such a mono phono preamp


The new MCX Phono Preamp optimizes the inclusion of moving coil step transformers in vinyl playback.
– Ron Sutherland
Technical Specs & Notes
Power Requirements:
120 VAC
MCX Dimensions (WHD): 17″ x 2 1/2″ x 13″
Weight: 11 lbs. each
Price: $6,000

Loading Adjustments
Dale/Vishay RN65-style resistors are included with the following values.
47.5k for 475 Ohm loading
30k for 300 Ohm loading
20k for 200 Ohm loading
10k for 100 Ohm loading
5k for 50 Ohm loading
Your MCX ships with loading set to 200 Ohms.
Gain Adjustments
Gain is determined by the resistor value installed in the GAIN resistor socket. Dale/Vishay RN65-style resistors are included
with the following values.
221 Ohms for 60 dB gain
110 Ohms for 66 dB gain
56 Ohms for 72 dB gain
Your MCX ships with gain set to 60 dB.
